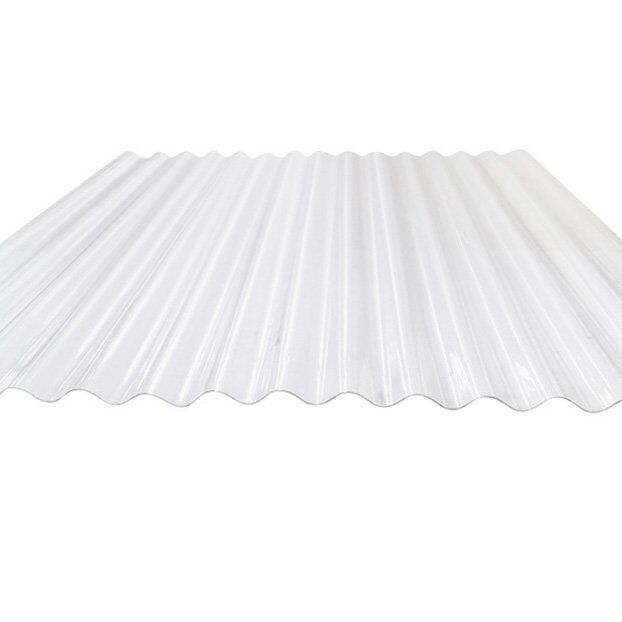

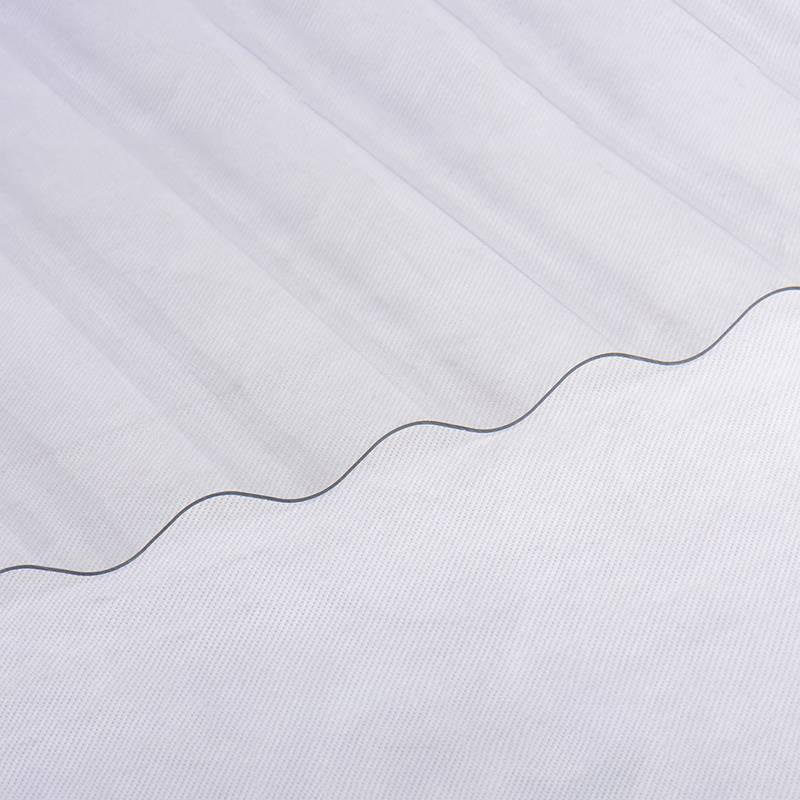

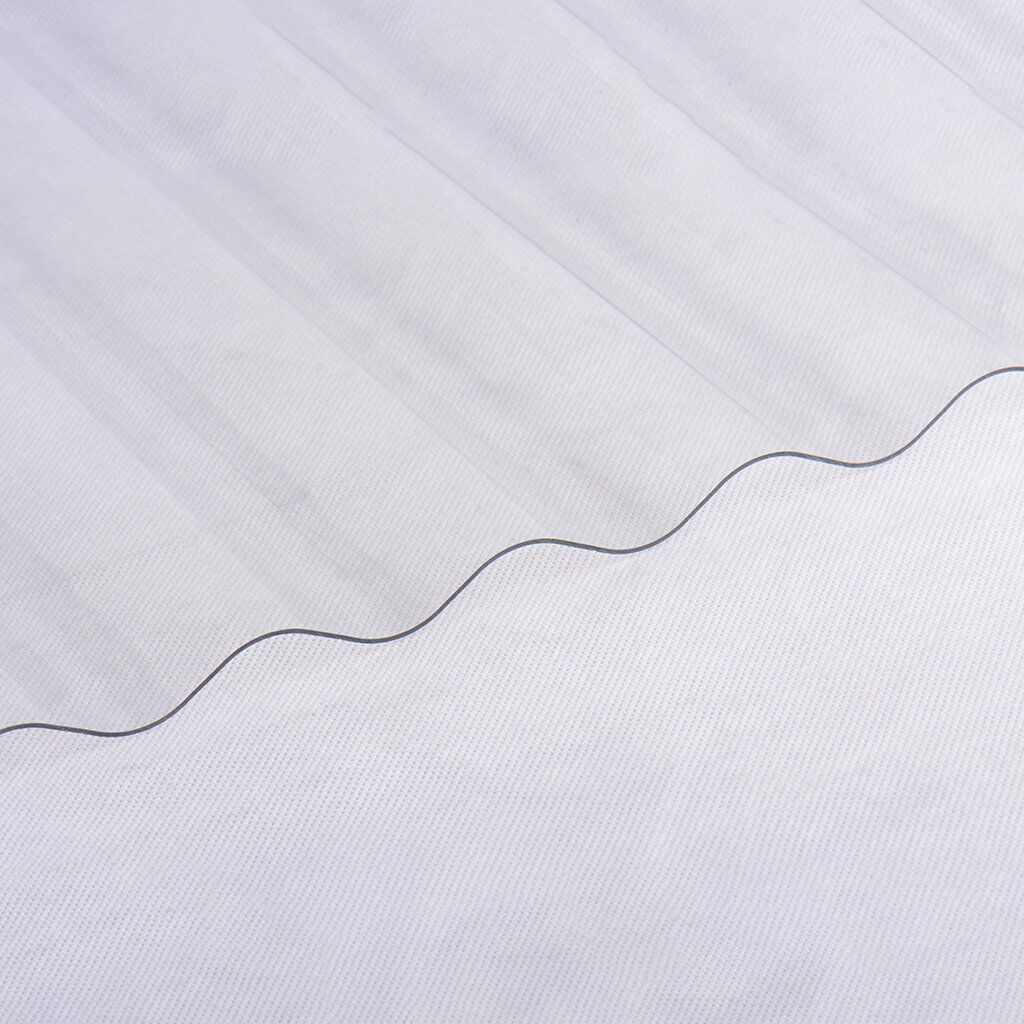

Polycarbonate corrugated roofing are UV resistant, impact resistant, long-lasting and have a high light transmission rate.

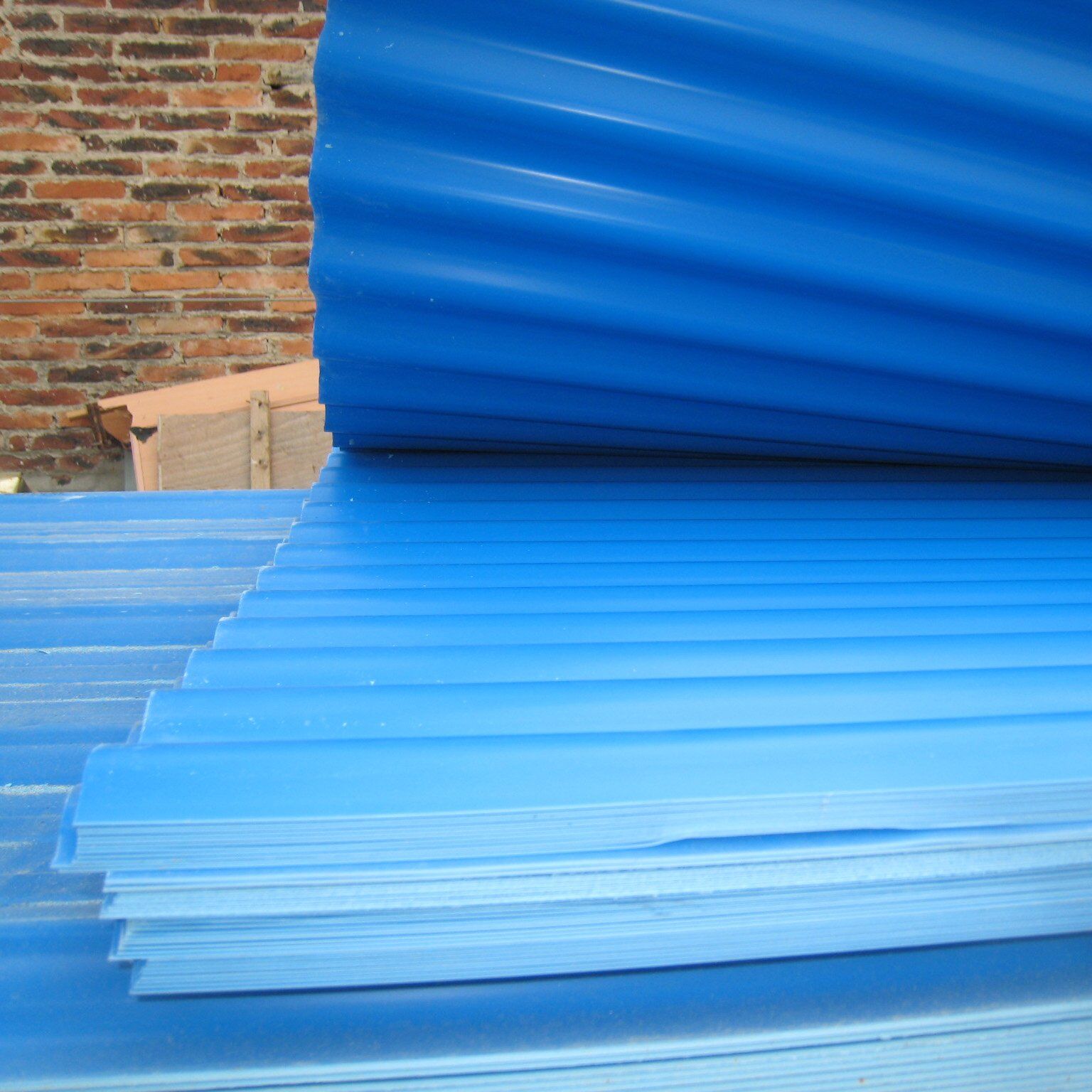

Polycarbonate corrugated sheets are available in trapezoidal type 1050 and 840, wave type 930 and 1130. Transparent resin tile type 1050, length arbitrary customization, the colour is transparent, lake blue, grass green, teal, etc., can customize the colour. It is the ideal roofing environmental protection and energy saving lighting material for plant lighting, greenhouse shed and rain shed carport.
corrugated polycarbonate sheets are made of polycarbonate PC as the main raw material, with the addition of UV anti-UV agent and other chemical additives, using today’s advanced technology and equipment.corrugated polycarbonate plastic roof panel have excellent physical and mechanical stability; not easy to yellowing, aging, and up to 99% of the UV rays can be effectively absorbed and isolated by the test. clear corrugated sheets have good weather resistance and high impact strength.
High load-bearing capacity
High light transmission
Light weight
Low price
Multiple colors
Efficient in blocking heat transmission
Easy and fast installation
YIPLASTIC ANIT UV&IR Polycarbonate sheets can isolat 100% of UV damage to human body,effectively isolate temperature transmission,achieve constant temperature performance,superior impact resistance,fight against high-altitude parabolliceffective safety protection,20 years of super Long warranty,is the replacement of outdoor PC board.
Artificial accelerated aging experiments confirm the results.
Conclusion: The co-extruded UV protective layer has the strongest protective effect on the board
Artificial weathering (Xe-WOM procedure),
700 hrs = 1 year of Europe outdoor weathering
Light transmittance comparable to glass
Control light transmittance as needed
Soft and even light transmission – diffuse
Effectively limits solar heat penetration
Protects skin, cornea, and organic materials from fading
Unbreakable, used for roof and side lighting in buildings, replacing safety glass
Light transmission applications
UV-blocking layer for heritage protection
THE COMPANY PRODUCTS HAVE PASSED SGS EU BUILDING MATERIALS FIRE DETECTION AND ROSH INSPECTION
YIPLASTIC Corrugated Polycarbonate Sheet meets the
Restriction Of Hazardous Substances
YIPLASTIC offers environmentally-friendly Corrugated polycarbonate sheets and meets RoHS standards in Europe.
√ Light transmission: Depending on the color, the light transmittance can be 0-82%.
√ Energy saving: Low heat transfer coefficient (K value), good heat insulation, energy saving is 1.5-1.7 times of the same thickness of glass.
√ Light weight:The weight is 1/15 of the same thickness of glass.
√ Impact resistance: Good toughness, not easy to be damaged in transportation, installation and use; impact strength is 250 times that of glass and 30 times that of Plexiglas.
√ Ageing resistance: The surface of the product contains a co-extruded layer of UV protection, with good outdoor weather resistance, and still maintains good optical properties and mechanical properties in long-term use.
√ Wind pressure resistance: Wind pressure resistance up to the national standard GB/T 7106-2008 level 1.
√ Adapt to large temperature difference: Long-term use temperature -40° C-120° C.
√ Sound insulation:The good sound insulation property of polycarbonate with hollow structure can effectively reduce noise.
√ Flame-retardant: According to the national standard GB8624-2012, it is flame-retardant B1 grade.
√ Easy to install
√ Pressure and impact resistant: PMMA transparent tiles are strong
Protects people and property in the event of an accident
Light source shielding Add diffusion effect
Micro-particles increase light shielding and cost effectiveness
√ High temperature resistance: Increased haze value while maintaining high light transmission
Suitable for use in close up environments
√ Workability: Suitable for direct downward backlighting
High brightness, high diffusion for increased light distribution from the backlight
Corrugated Polycarbonate Sheets | |
Thickness | 0.7mm–3mm |
Width | Different wave-forms correspond to different widths. |
Length | According to requirements. |
Color | Clear, transparent-blue, transparent-green, brown, opalescent. |
Customerized size and color can be acceptable |
Physical Properties | ||||
Items | Testing Method | Unit | Value | |
Density | ASTM D792 | g/cm^3 | 1.2 | |
Service Temperature (Short term) | °C | -50 to 120 | ||
Service Temperature (Long term) | °C | -40 to 100 | ||
Rockwell Hardness | ASTM D785 | R Scale | 110R | |
Light Transmission | ASTM D1003 | % | >88 | |
Haze | ASTM D1003 | % | <0.5 | |
Yellowness Index | ASTM D1925 | <1 | ||
Tensile Strength at Yield | ASTM D-638 | Mpa or N/mm² | >60 | |
Tensile Strength at Break | ASTM D-638 | MPa or N/mm² | >65 | |
Coefficient of Linear Thermal Expansion | ASTM D-696 | mm/m °C | 0.065 | |
Heat Deflection Temperature | ASTM D648 | °C | 130 | |
Coefficient of Linear Thermal Expansion | ASTM D696 | cm/cm °C | 6.5/100000 | |
Thermal Conductivity | ASTM C-177 | W/m K | 0.21 | |
Elongation at Yield | ASTM D638 | % | 7 | |
Elongation at Break | ASTM D-638 | % | >80 | |
Tensile Modulus of Elasticity | ASTM D-638 | MPa | 2400 | |
Flexural Strength | ASTM D-790 | MPa | 100 | |
Impact Falling Weight (E-50) | ISO 6603/1 E50 | J | 50 | |
Fire rating | UL 94 | / | V1, V2, V0 |
Type | Clear | Bronze | White opal | Transparent Green | Transparent blue | Opalecent | Brown | Sliver Gray | Gray | Diffuse milky white | Milky white translucent | Custom Color |
Circular corrugated polycarbonate sheet | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ |
Angular corrugated polycarbonate sheet | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ |
When hollow profile and solid sheet are installed with screw installation,all rivet holes should be reamed to reserve space for expansion and contraction,Usually,the holes should be larger than the bolt of the bolt or rivet stems by 50%,so as to avoid expansion or shrinkage.
Fill up the holes,and cover the exposed portion with silicone compound to prevent detergents permeating which brings damage to PC sheets and avoid gradual cracks.
Rivet heads should be larger than the stems by 2 times.Use gaskets or washers to avoid the rivet heads touching PC Corrugated Sheet,and reduce the pressure.
Do not screw into too tightly. ,Do not use gaskets made of PVC.
The bending part should be avoided using screw for cold bending process.
Yes, they have a protective anti-UV rays layer.
No, it has an anti-aging quality that prevents yellowing.
Yes, they are fire-resistant self-extinguishing as well.
You can blow and brush the dust and clean the stains with warm soapy water. Don’t use any sharp tools or chemicals.
Yes, they are designed to withstand extreme wind conditions.
Yes, they are highly mechanically stable.
Yes, they can survive thumping and crashing and rough transportation routes.
Yes, they can be used as a replacement windshield.
