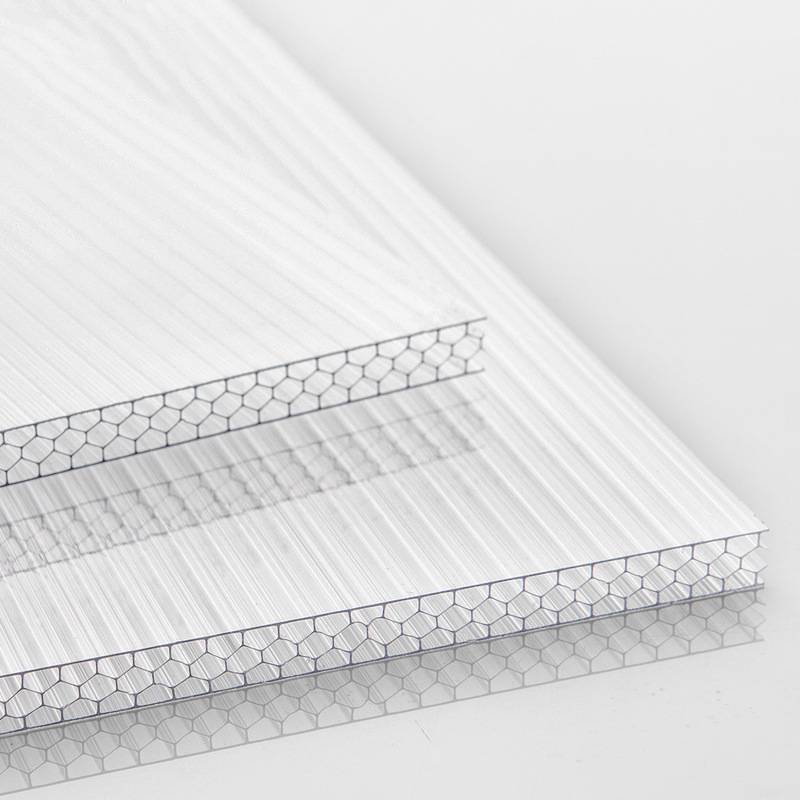

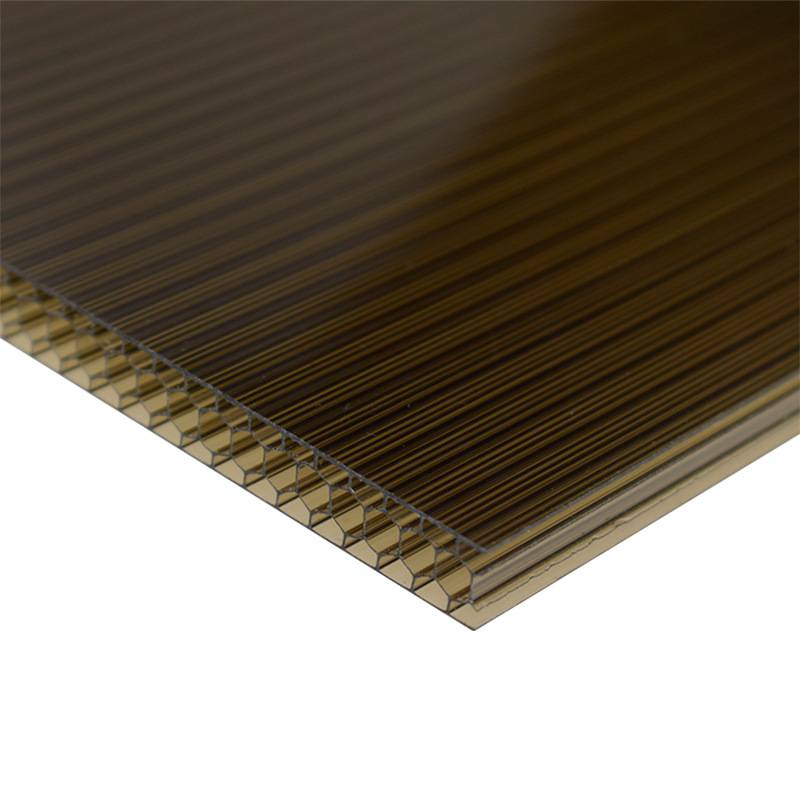

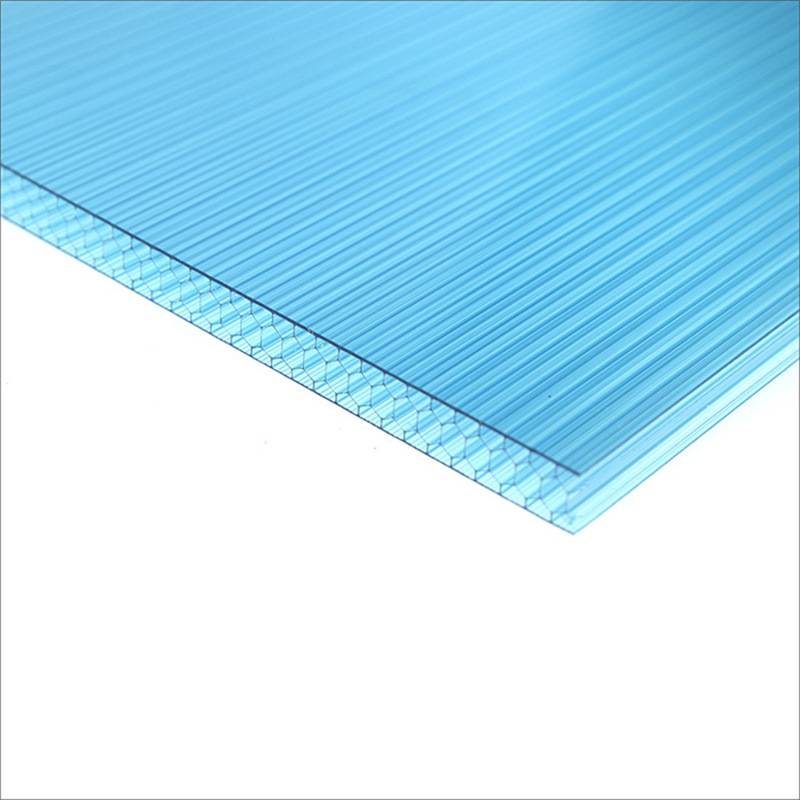

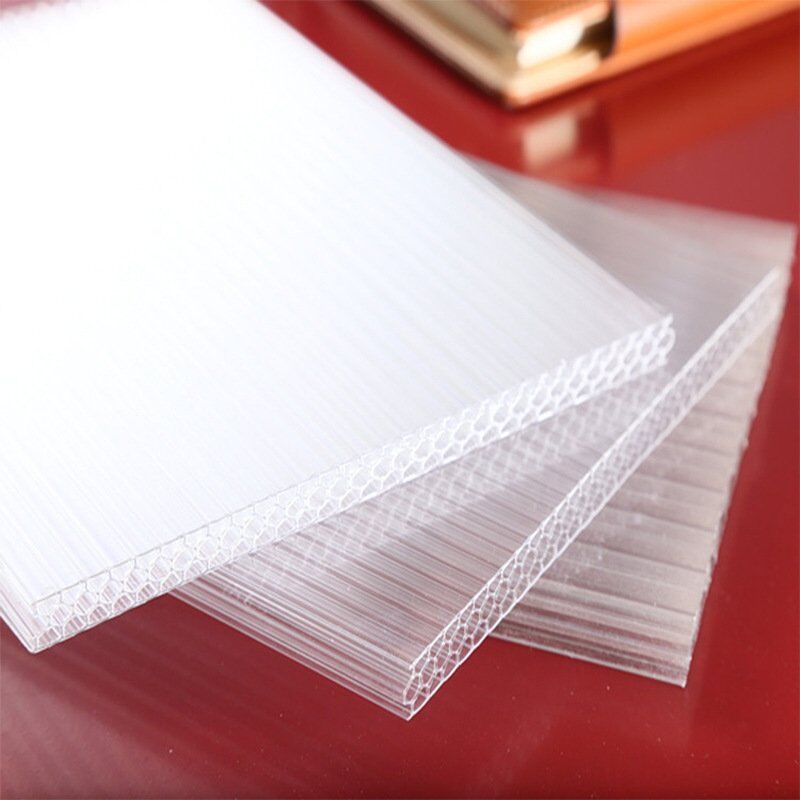

YiPlastics Honeycomb Polycarbonate sheets are one of the outstanding and widely used polycarbonate sheets.
It has a honeycomb-shaped structure that provides insulating air spaces and the best thermal isolation.
It has a high transparency of up to seventy percent.
They can be used in greenhouses, roofing structures, skylights of different buildings, sunrooms etc.
Factors affecting durability.
UV protective layer production process, co-extrusion/coating?
Material, thickness and uniformity of UV protective layer
The degree of matching between panel production equipment and PC raw materials
UV protective layer
Ten-year anti-aging quality guarantee with limited optical index
Guarantee based on the integrity of the company
Guaranteed by the technical strength of the enterprise
It is a guarantee of perception quality, not service life
Artificial accelerated aging experiments confirm the results.
Conclusion: The co-extruded UV protective layer has the strongest protective effect on the board
Artificial weathering (Xe-WOM procedure),
700 hrs = 1 year of Europe outdoor weathering
Light transmittance comparable to glass
Control light transmittance as needed
Soft and even light transmission – diffuse
Effectively limits solar heat penetration
Protects skin, cornea, and organic materials from fading
Unbreakable, used for roof and side lighting in buildings, replacing safety glass
Light transmission applications
UV-blocking layer for heritage protection
Natural environmental temperature effects.
Unlike ordinary plastics, polycarbonate sheets in the temperature range of -40 ā to 120 ā can still maintain various physical
performance in the temperature range of -40ā to 120ā without being affected by the natural environment temperature.
Safety, eliminating accident hazards
Reduced installation and transport losses
Reduced maintenance costs
Multi-layer panels can withstand severe natural disasters
Single-layer panels can be used for ballistic protection
THE COMPANY PRODUCTS HAVE PASSED SGS EU BUILDING MATERIALS FIRE DETECTION AND ROSH INSPECTION
YIPLASTIC Corrugated Polycarbonate Sheet meets the V0 or V2 fire rating according to UL94. Therefore, it can be used for household products, architecture, and transportation fields.
Restriction Of Hazardous Substances
YIPLASTIC offers environmentally-friendly Corrugated polycarbonate sheets and meets RoHS standards in Europe.
Honeycomb polycarbonate sheets are highly weather resistant. They are proven to be the best performing under severe weather conditions. They can withstand very high as well as very low temperatures e.g. -40 degrees to 120 degrees.
Honeycomb sheets are used for the places of weather-changing conditions. They performed the best in hailstones, snowstorms, sandstorms and hurricanes as well.
They are very lightweight than solid polycarbonate sheets and also stronger than twin wall polycarbonate sheets. They are easy to install and have outstanding thermal insulation for roofing and other purposes. It comes with a UV protection coating as well as an anti-condensation coating. It has 10 years manufacturerās guarantee.
| Type | Thickness(mm) | Color type | Max width (mm) | Length(mm) | Density | Light transmisson | K VALUE | Min Cold Bend Radius (mm) |
| Twin-wall PC sheets | 4 | Clear Opalecent Grass green lake blue Gray Brown | 2100 mm | NO LIMITED | 0.9 | 80 | 4.1 | 700 |
| 6 | 1.1 | 80 | 3.5 | 1050 | ||||
| 8 | 1.5 | 80 | 2.9 | 1400 | ||||
| 10 | 1.7 | 79 | 2.8 | 1750 | ||||
| Three-wall PC Sheets | 8 | 1.7 | 73 | 2.6 | 1400 | |||
| 10 | 1.9 | 73 | 2.4 | 1750 | ||||
| 12 | 2.1 | 72 | 2.4 | 2100 | ||||
| 16 | 2.5 | 72 | 2.2 | 2800 | ||||
| Three-wall x structure PC sheet | 16 | Clear | 2.5 | 62 | 2.0 | Not recommended | ||
| Opalecent | ||||||||
| 25 | Sliver Gray | 3.5 | 55 | 1.7 | ||||
| Five-wall x structure PC sheet | 40 | Clear | 1500 | 4.7 | 45+-5 | 1.1 | ||
| Diffuse milky white | 11+-5 | |||||||
| Five-wall plug structure PC sheet | 40 | Milky white translucent | 1570 | 4.7 | 23+-5 |
REMARK:
Ā
| Item | Unit | Technical requirements | ||
| Falling hammer impact (perforation characteristics) | Maximum penetration force | N | ā„600 | |
| Maximum penetration energy | ć | ā„5 | ||
| Falling hammer impact (50% impact damage energy) | ć | ā„15 | ||
| Thermal expansion coefficient | ā-1 | ā¤3.5Ć10-5 | ||
| Weathering performance (6000h) | light transmittance reduction | ć | ā¤6.0 | |
| Yellow index change | ć | ā¤10.0 | ||
| Heat transfer coefficien | d=8mm(twin-hollow) | W/(m2. K) | ā¤3.3 | |
| d=10mm(twin-hollow) | ā¤3.0 | |||
| d=10mm(three-hollow) | ā¤2.8 | |||
| UV transmittance ratio | ć | ā¤0.001 | ||
| Ā burning performanceĀ | grade | less than B grade | ||
| Model | Clear | Bronze | White opal | Glass Green | lake blue | Opalecent | Brown | Sliver Gray | Gray | Diffuse milky white | Milky white translucent | Custom Color |
| Twin-wall PC sheets | ā | ā | ā | ā | ā | ā | ā | Ā | ā | Ā | Ā | ā |
| Three-wall PC Sheets | ā | ā | ā | ā | ā | ā | ā | Ā | ā | Ā | Ā | ā |
| Three-wall x structure PC sheet | ā | Ā | Ā | Ā | Ā | ā | Ā | ā | Ā | Ā | Ā | ā |
| Five-wall plug structure PC sheet | Ā | Ā | Ā | Ā | Ā | Ā | Ā | Ā | Ā | Ā | ā | ā |
TRANSMITTANCE
| MATERIAL | TRANSMITTANCE(%) |
| SINGLELAYER GLASS | 92 |
| 11OMM TWIN -WALL HOLLOW SHEET | 77 |
| Material Name | Heat transfer coefficient | Material Name | Heat transfer coefficient |
| ļ¼W/m2Ā Ā·K) | ļ¼W/m2Ā āK) | ||
| 6mm glass | 5.8 | 6 mm single polycarbonate sheet | 4.8 |
| 3ļ¼3ļ¼3ļ¼Insulating glass | 4.09 | 8mm polycarbonate sheet | 2.9 |
| 3ļ¼3ļ¼6ļ¼Insulating glass | 3.17 | 10mm polycarbonate sheet | 2.8 |
| 6ļ¼6ļ¼6ļ¼Insulating glass | 3.06 | 16mm polycarbonate sheet | 2.2 |
| 3ļ¼3ļ¼12ļ¼Insulating glass | 2.91 | 16mm polycarbonate sheet | 2.2 |
| 6ļ¼6ļ¼12ļ¼Insulating glass | 2.8 | 25mm polycarbonate sheet | 1.7 |
You can clean it with just water.
You can bend your sheet keeping in mind that the bending radius ought to be 175 times extra than the width.
Yes, it comes with a UV rays protection coating.
No, we only provide polycarbonate sheets.
Because it is made as a honeycomb pattern.
Yes, they can be used as a decorative walls.
Yes, they are very lightweight than solid polycarbonate sheets and also stronger than twin wall polycarbonate sheets.
It comes with a UV protection coating as well as an anti-condensation coating
