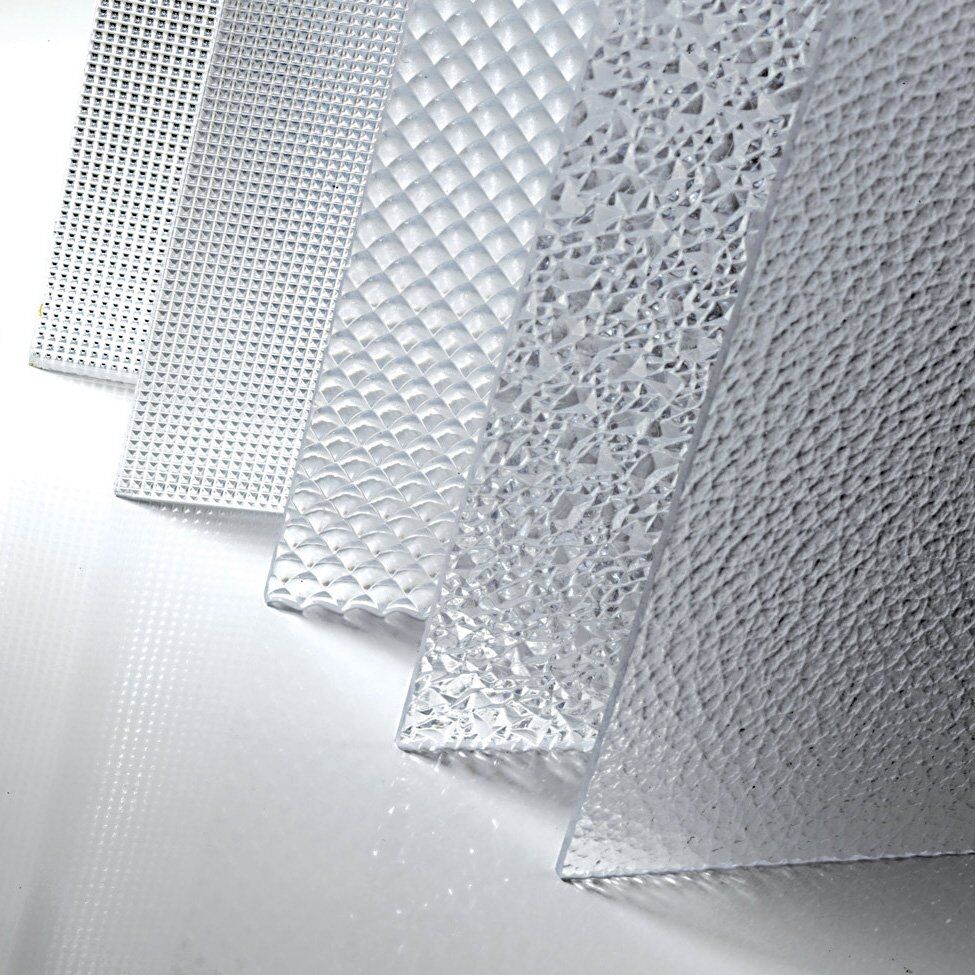

YiPlastics embossed polycarbonate sheets are a radiant roofing material.
It is very long-lasting and best for bent installations.
The embossed surface upsurges its strength and grip to make it the strongest.
They can be used in many fields of life such as security purposes, sound insulation, greenhouses and whatnot.
YIPLASTIC ANIT UV&IR Polycarbonate sheets can isolat 100% of UV damage to human body,effectively isolate temperature transmission,achieve constant temperature performance,superior impact resistance,fight against high-altitude parabolliceffective safety protection,20 years of super Long warranty,is the replacement of outdoor PC board.
Artificial accelerated aging experiments confirm the results.
Conclusion: The co-extruded UV protective layer has the strongest protective effect on the board
Artificial weathering (Xe-WOM procedure),
700 hrs = 1 year of Europe outdoor weathering
Light transmittance comparable to glass
Control light transmittance as needed
Soft and even light transmission – diffuse
Effectively limits solar heat penetration
Protects skin, cornea, and organic materials from fading
Unbreakable, used for roof and side lighting in buildings, replacing safety glass
Light transmission applications
UV-blocking layer for heritage protection
THE COMPANY PRODUCTS HAVE PASSED SGS EU BUILDING MATERIALS FIRE DETECTION AND ROSH INSPECTION
YIPLASTIC Corrugated Polycarbonate Sheet meets the V0 or V2 fire rating according to UL94. Therefore, it can be used for household products, architecture, and transportation fields.
Restriction Of Hazardous Substances
YIPLASTIC offers environmentally-friendly Corrugated polycarbonate sheets and meets RoHS standards in Europe.
They have high impact strength. Therefore they are ideal to be used in curved installations. They also have high light transmission.
They are a better sound insulator than glass. They are bendable up to 6 mm in thickness, hence highly thermoformable.
Their installation is very easy because of their lightweight. They are also highly wind-resistant which makes them the best sound insulators.
| THICKNESS mm | WEIGHK(g/m2) | LIGHT TRANSTTANCE ％(ASTM D1003) | Shock strength J/m (ASTM D256) | Sound Isoluation (DB) | Standard Width(mm) | Standard Length(mm) | Standard Color |
| 2 | 2.4 | 88 | 900 | 22 | 1210 1560 1810 2100 | 3000 | Clear, Opal Blue , Green Bronze |
| 3 | 3.6 | 87 | 930 | 24 | |||
| 4.5 | 5.4 | 86 | 1100 | 27 | |||
| 6 | 7.2 | 85 | 1300 | 28 | |||
| 8 | 9.6 | 84 | 1400 | 30 | |||
| 10 | 12 | 82 | 1500 | 32 | |||
| 12 | 14.4 | 81 | 1600 | 34 | |||
| 15 | 18 | 36 | |||||
| 18 | 21.6 | 37 | |||||
| 20 | 24 | 37 |
Remarks:
More features of Soild polycarbonate sheets:
•Simply installed
•Light weight
•Avoid alot and sound insulation
•Light weight and high wind resistance
•Impact resistance
•Temperature range:-40~+120°C
| Characteristics | Unit | PC Solid sheet | PC Embossed sheet |
| Light transmittance | % | >78 | 60-70 |
| Impact strength | J/m | 50 | 35 |
| Coefficient of thermal expansion | mm/m.°C | 0.065 | 0.065 |
| Heat transfer coefficient | W/m.°C | 0.21 | 0.21 |
| Service temperature | °C | -40°C+120°C | -40°C+120°C |
| Tensile strength | N/mm2 | 60 | 60 |
| Bending strength | N/mm2 | 100 | 100 |
| Bending elastic modulus | Mpa | 2400 | 2400 |
| Tensile stres at break | Mpa | 130 | |
| Elongation at break | % | 130 | |
| Sound insulation effect | db | 35 db reduction for 6mm solid panels | 28dB reduction for 3mm solid board |
| Model | Clear | Bronze | White opal | Glass Green | lake blue | Opalecent | Brown | Sliver Gray | Gray | Diffuse milky white | Milky white translucent | Custom Color |
| 2 | ✔ | ✔ | ✔ | ✔ | ✔ | |||||||
| 3 | ✔ | ✔ | ✔ | ✔ | ✔ | |||||||
| 4.5 | ✔ | ✔ | ✔ | ✔ | ✔ | |||||||
| 6 | ✔ | ✔ | ✔ | ✔ | ✔ | |||||||
| 8 | ✔ | ✔ | ✔ | ✔ | ✔ | |||||||
| 10 | ✔ | ✔ | ✔ | ✔ | ✔ | |||||||
| 12 | ✔ | ✔ | ✔ | ✔ | ✔ | |||||||
| 15 | ✔ | ✔ | ✔ | ✔ | ✔ | |||||||
| 18 | ✔ | ✔ | ✔ | ✔ | ✔ | |||||||
| 20 | ✔ | ✔ | ✔ | ✔ | ✔ |
1.The telephone booth, advertising board, light boxes advertising, exhibition layout Instrument, meter, high voltage switch cabinet panel, LED panel board and military industry
2.highway and urban elevated road noise barriers
3.Office building, department store, hotels, villas, schools, hospitals, stadiums, entertainment center and public facilities lighting ceiling
4.advertising street signs, light box advertising, display and exhibition arrangements; for instruments, meters, high and low voltage switchgear panels,
5.canopies, carports, waiting sheds and other light and rain shelters.
6.agricultural greenhouse and breeding shed and ecological restaurant
7.Subway entrances, railway stations, car parks, shopping centers, shelters, rest rooms, corridors canopy
8.Bank security counter, jewelry store anti-theft window, police riot shields airports, safety glazing material plant Advertising light panel, advertising display cards, decorative walls
Home, office interior space, walkways, fence, balcony, shower room sliding door
Yes, they are specially designed for curvy installations
The embossed structure gives strength to the sheets
Yes, you can easily drill and machine it. It’s very strong
Yes, it is designed to withstand severe weather conditions i.e. -40 degrees to 120 degrees.
Yes, they can be used in greenhouses.
Yes, they are used in signboards.
They are bendable up to 6 mm in thickness, hence highly thermoformable.
Yes, they are a very good sound insulator.
YIPLASTIC is a global leading manufacturer of high quality polycarbonate sheets and processing products,
Our 42000sqm and 5 imported lines are established in 2004 in china, we supply OEM AND ODM Marketing with high quality for all over the world.
