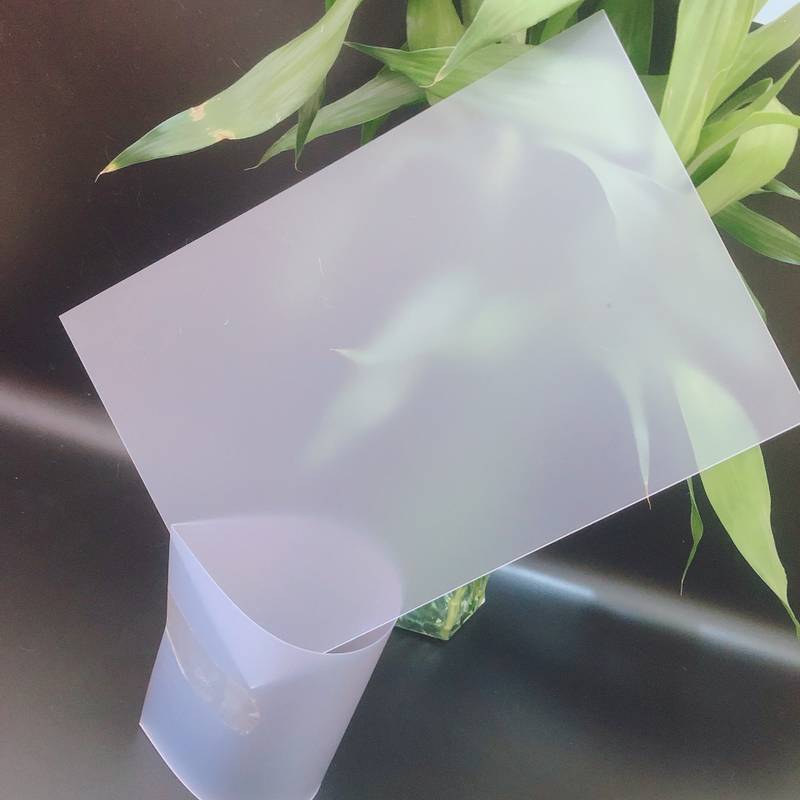

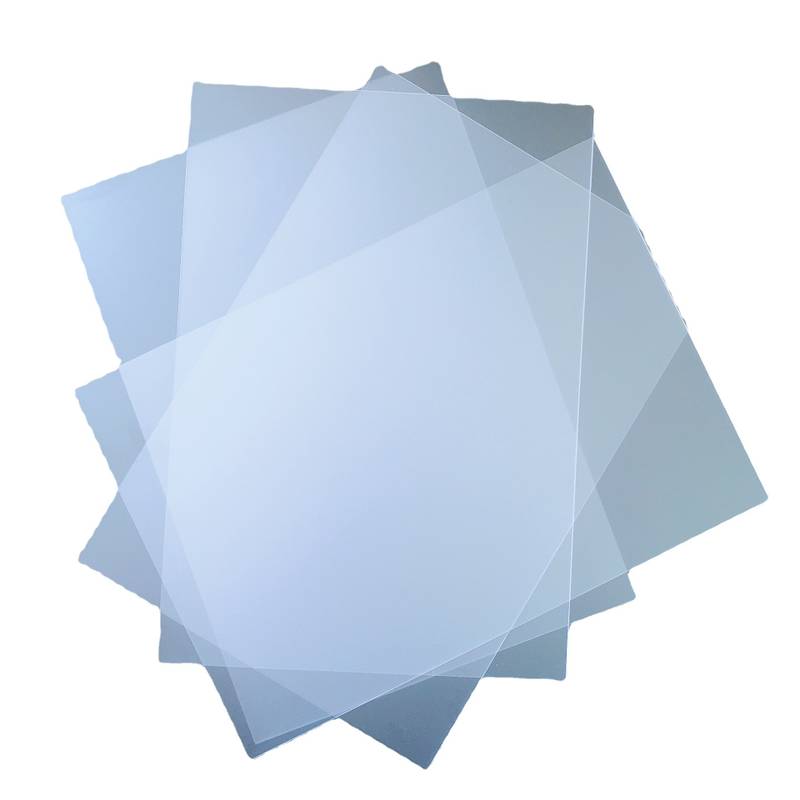

YiPlastics Frosted Plastic Sheet or Matte Polycarbonate proves to be the best of its kind.
They are primarily used for privacy protection in offices and buildings.
They can also be used to print different things.
It is fire resistant as well as weather resistant.
It comes with a long-lasting warranty of 10 years.
It can be used to create partitions between rooms and spaces etc.
YIPLASTIC ANIT UV&IR Polycarbonate sheets can isolat 100% of UV damage to human body,effectively isolate temperature transmission,achieve constant temperature performance,superior impact resistance,fight against high-altitude parabolliceffective safety protection,20 years of super Long warranty,is the replacement of outdoor PC board.
Artificial accelerated aging experiments confirm the results.
Conclusion: The co-extruded UV protective layer has the strongest protective effect on the board
Artificial weathering (Xe-WOM procedure),
700 hrs = 1 year of Europe outdoor weathering
Light transmittance comparable to glass
Control light transmittance as needed
Soft and even light transmission – diffuse
Effectively limits solar heat penetration
Protects skin, cornea, and organic materials from fading
Unbreakable, used for roof and side lighting in buildings, replacing safety glass
Light transmission applications
UV-blocking layer for heritage protection
THE COMPANY PRODUCTS HAVE PASSED SGS EU BUILDING MATERIALS FIRE DETECTION AND ROSH INSPECTION
YIPLASTIC Corrugated Polycarbonate Sheet meets the V0 or V2 fire rating according to UL94. Therefore, it can be used for household products, architecture, and transportation fields.
Restriction Of Hazardous Substances
YIPLASTIC offers environmentally-friendly Corrugated polycarbonate sheets and meets RoHS standards in Europe.
It comes with a specialized UV coating layer and a 10-year warranty.
Made for every kind of weather and temperature conditions e.g. -40 degrees to 120 degrees.
Easily printable and environment friendly. It gives privacy as well as a beautiful finishing touch to the interior and exterior of the buildings.
| THICKNESS mm | WEIGHK(g/m2) | LIGHT TRANSTTANCE ％(ASTM D1003) | Shock strength J/m (ASTM D256) | Sound Isoluation (DB) | Standard Width(mm) | Standard Length(mm) | Standard Color |
| 2 | 2.4 | 88 | 900 | 22 | 1210 1560 1810 2100 | 3000 | Clear, Opal Blue , Green Bronze |
| 3 | 3.6 | 87 | 930 | 24 | |||
| 4.5 | 5.4 | 86 | 1100 | 27 | |||
| 6 | 7.2 | 85 | 1300 | 28 | |||
| 8 | 9.6 | 84 | 1400 | 30 | |||
| 10 | 12 | 82 | 1500 | 32 | |||
| 12 | 14.4 | 81 | 1600 | 34 | |||
| 15 | 18 | 36 | |||||
| 18 | 21.6 | 37 | |||||
| 20 | 24 | 37 |
Remarks:
MorefeaturesofSoildpolycarbonatesheets:
•Simplyinstalled
•Lightweight
•Avoidalotandsoundinsulation
•Lightweightandhighwindresistance
•Impactresistance
•Temperaturerange:-40~+120°C
| Characteristics | Unit | PC Solid sheet | PC Embossed sheet |
| Light transmittance | % | >78 | 60-70 |
| Impact strength | J/m | 50 | 35 |
| Coefficient of thermal expansion | mm/m.°C | 0.065 | 0.065 |
| Heat transfer coefficient | W/m.°C | 0.21 | 0.21 |
| Service temperature | °C | -40°C+120°C | -40°C+120°C |
| Tensile strength | N/mm2 | 60 | 60 |
| Bending strength | N/mm2 | 100 | 100 |
| Bending elastic modulus | Mpa | 2400 | 2400 |
| Tensile stres at break | Mpa | 130 | |
| Elongation at break | % | 130 | |
| Sound insulation effect | db | 35 db reduction for 6mm solid panels | 28dB reduction for 3mm solid board |
| Model | Clear | Bronze | White opal | Glass Green | lake blue | Opalecent | Brown | Sliver Gray | Gray | Diffuse milky white | Milky white translucent | Custom Color |
| 2 | ✔ | ✔ | ✔ | ✔ | ✔ | |||||||
| 3 | ✔ | ✔ | ✔ | ✔ | ✔ | |||||||
| 4.5 | ✔ | ✔ | ✔ | ✔ | ✔ | |||||||
| 6 | ✔ | ✔ | ✔ | ✔ | ✔ | |||||||
| 8 | ✔ | ✔ | ✔ | ✔ | ✔ | |||||||
| 10 | ✔ | ✔ | ✔ | ✔ | ✔ | |||||||
| 12 | ✔ | ✔ | ✔ | ✔ | ✔ | |||||||
| 15 | ✔ | ✔ | ✔ | ✔ | ✔ | |||||||
| 18 | ✔ | ✔ | ✔ | ✔ | ✔ | |||||||
| 20 | ✔ | ✔ | ✔ | ✔ | ✔ |
1.The telephone booth, advertising board, light boxes advertising, exhibition layout Instrument, meter, high voltage switch cabinet panel, LED panel board and military industry
2.highway and urban elevated road noise barriers
3.Office building, department store, hotels, villas, schools, hospitals, stadiums, entertainment center and public facilities lighting ceiling
4.advertising street signs, light box advertising, display and exhibition arrangements; for instruments, meters, high and low voltage switchgear panels,
5.canopies, carports, waiting sheds and other light and rain shelters.
6.agricultural greenhouse and breeding shed and ecological restaurant
7.Subway entrances, railway stations, car parks, shopping centers, shelters, rest rooms, corridors canopy
8.Bank security counter, jewelry store anti-theft window, police riot shields airports, safety glazing material plant Advertising light panel, advertising display cards, decorative walls
Home, office interior space, walkways, fence, balcony, shower room sliding door
We can make it according to the customer’s requirements whether it be a roll or a sheet.
Yes, we can customize it according to your office’s architecture.
Yes, you can select the color of your choice from our colors section.
Yes, they are two different names for one product.
Yes, they have a 10 years warranty.
Yes, they can be used as a partition.
Yes, they are made for every kind of weather and temperature conditions e.g. -40 degrees to 120 degrees.
Yes, they have a UV coating
YIPLASTIC is a global leading manufacturer of high quality polycarbonate sheets and processing products,
Our 42000sqm and 5 imported lines are established in 2004 in china, we supply OEM AND ODM Marketing with high quality for all over the world.
