Description

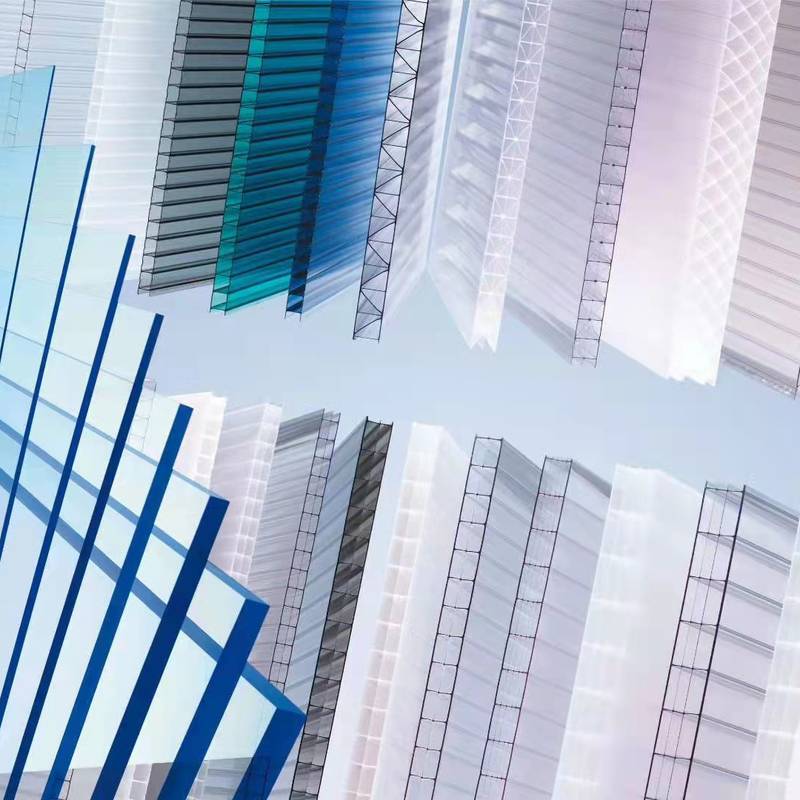

Yiplastic polycarbonate Sheets Features
Durability
Factors affecting durability.
UV protective layer production process, co-extrusion/coating?
Material, thickness and uniformity of UV protective layer
The degree of matching between panel production equipment and PC raw materials
UV protective layer
Ten-year anti-aging quality guarantee with limited optical index
Guarantee based on the integrity of the company
Guaranteed by the technical strength of the enterprise
It is a guarantee of perception quality, not service life
UV coextrusion layer urder a special microscope →
Aging experiment
Artificial accelerated aging experiments confirm the results.
Conclusion: The co-extruded UV protective layer has the strongest protective effect on the board
Artificial weathering (Xe-WOM procedure),
700 hrs = 1 year of Europe outdoor weathering
Light Transmission
Light transmittance comparable to glass
Control light transmittance as needed
Soft and even light transmission – diffuse
Effectively limits solar heat penetration
Protects skin, cornea, and organic materials from fading
Unbreakable, used for roof and side lighting in buildings, replacing safety glass
Light transmission applications
UV-blocking layer for heritage protection
Thermal stability performance
Natural environmental temperature effects.
Unlike ordinary plastics, polycarbonate sheets in the temperature range of -40 ℃ to 120 ℃ can still maintain various physical
performance in the temperature range of -40℃ to 120℃ without being affected by the natural environment temperature.
Impact resistance
Safety, eliminating accident hazards
Reduced installation and transport losses
Reduced maintenance costs
Multi-layer panels can withstand severe natural disasters
Single-layer panels can be used for ballistic protection
Environment protection
THE COMPANY PRODUCTS HAVE PASSED SGS EU BUILDING MATERIALS FIRE DETECTION AND ROSH INSPECTION
YIPLASTIC Corrugated Polycarbonate Sheet meets the V0 or V2 fire rating according to UL94. Therefore, it can be used for household products, architecture, and transportation fields.
Restriction Of Hazardous Substances
YIPLASTIC offers environmentally-friendly Corrugated polycarbonate sheets and meets RoHS standards in Europe.
Product Benefits
√ High flexible : Our twin wall polycarbonate sheets are highly flexible and can be used anywhere.
√ Light weigh : It is lightweight and very easy to carry and work with. and very low weight than many solid panels present nowadays. It comes with a UV protection layer to make it long-lasting.
√ Impact resistance : It has a high power impact , The structure is made stiff to ensure no breakage or cracks. It is present in many beautiful colors and different ranges of transmission.
√ Easy to install :The structure is very resilient, so it can work in every weather and UV condition. It resists all ranges of UV radiation. The highly flexible structure makes it easy to install and handle.
√ Anti-fire : It is designed to give fire protection and fire-resistance.
Product Specification
Product size
Physical properties
Color option
Installation clearance
Comparision light trasimittance
Comparison thermal insulation
Product size
| Type | Thickness(mm) | Color type | Max width (mm) | Length(mm) | Density | Light transmisson | K VALUE | Min Cold Bend Radius (mm) |
| Twin-wall PC sheets | 4 | Clear Opalecent Grass green lake blue Gray Brown |
2100 mm | NO LIMITED | 0.9 | 80 | 4.1 | 700 |
| 6 | 1.1 | 80 | 3.5 | 1050 | ||||
| 8 | 1.5 | 80 | 2.9 | 1400 | ||||
| 10 | 1.7 | 79 | 2.8 | 1750 | ||||
| Three-wall PC Sheets | 8 | 1.7 | 73 | 2.6 | 1400 | |||
| 10 | 1.9 | 73 | 2.4 | 1750 | ||||
| 12 | 2.1 | 72 | 2.4 | 2100 | ||||
| 16 | 2.5 | 72 | 2.2 | 2800 | ||||
| Three-wall x structure PC sheet | 16 | Clear | 2.5 | 62 | 2.0 | Not recommended | ||
| Opalecent | ||||||||
| 25 | Sliver Gray | 3.5 | 55 | 1.7 | ||||
| Five-wall x structure PC sheet | 40 | Clear | 1500 | 4.7 | 45+-5 | 1.1 | ||
| Diffuse milky white | 11+-5 | |||||||
| Five-wall plug structure PC sheet | 40 | Milky white translucent | 1570 | 4.7 | 23+-5 |
REMARK:
- YiPlastic’s twin-wall polycarbonate sheets are eye-catching and easy to install. They can be machined conveniently. That’s why they are getting more attention than many traditional building materials.
- They have durable, practical and intelligent features as well. They achieved environmental protection by saving energy along with low-cost energy consumption. Our polycarbonate sheets are produced in accordance with strict international standards.
- Our twin wall polycarbonate sheets have High impact strength and Flexibility. They are flexible approximately 200 times that of glass and 20 times that of organic glass.
- They have a load-bearing strong structure which is proven to be the best for reducing the structure cost and making things easier.
- They have High light diffusion and easy installation processes. It has a 70% rate of fracture elongation, along with tremendous cold bending and hot bending properties.
Physical properties
| Item | Unit | Technical requirements | ||
| Falling hammer impact (perforation characteristics) |
Maximum penetration force | N | ≥600 | |
| Maximum penetration energy | ≥5 | |||
| Falling hammer impact (50% impact damage energy) | ≥15 | |||
| Thermal expansion coefficient | ℃-1 | ≤3.5×10-5 | ||
| Weathering performance (6000h) | light transmittance reduction | ≤6.0 | ||
| Yellow index change | ≤10.0 | |||
| Heat transfer coefficien | d=8mm(twin-hollow) | W/(m2. K) | ≤3.3 | |
| d=10mm(twin-hollow) | ≤3.0 | |||
| d=10mm(three-hollow) | ≤2.8 | |||
| UV transmittance ratio | ≤0.001 | |||
| burning performance | grade | less than B grade | ||
Color option
| Model | Clear | Bronze | White opal | Glass Green | lake blue | Opalecent | Brown | Sliver Gray | Gray | Diffuse milky white | Milky white translucent | Custom Color |
| Twin-wall PC sheets | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | |||
| Three-wall PC Sheets | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | |||
| Three-wall x structure PC sheet | ✔ | ✔ | ✔ | ✔ | ||||||||
| Five-wall plug structure PC sheet | ✔ | ✔ |
Installation clearance
Comparision light trasimittance
TRANSMITTANCE
| MATERIAL | TRANSMITTANCE(%) |
| SINGLELAYER GLASS | 92 |
| 11OMM TWIN -WALL HOLLOW SHEET | 77 |
Comparison thermal insulation
| Material Name | Heat transfer coefficient | Material Name | Heat transfer coefficient |
| （W/m2 ·K) | （W/m2 ∙K) | ||
| 6mm glass | 5.8 | 6 mm single polycarbonate sheet | 4.8 |
| 3＋3（3）Insulating glass | 4.09 | 8mm polycarbonate sheet | 2.9 |
| 3＋3（6）Insulating glass | 3.17 | 10mm polycarbonate sheet | 2.8 |
| 6＋6（6）Insulating glass | 3.06 | 16mm polycarbonate sheet | 2.2 |
| 3＋3（12）Insulating glass | 2.91 | 16mm polycarbonate sheet | 2.2 |
| 6＋6（12）Insulating glass | 2.8 | 25mm polycarbonate sheet | 1.7 |
Application scenarios
Exterior roofing buildings
Skylight roofs
Greenhouse
Interior and exterior of buildings
Related articles
FOSHAN YIPLASTIC Material Technology Co. Ltd
shirelypc008@gmail.com
May 20, 2022
No Comments
PRODUCT NEWS
13+ reasons why should you invest in Polycarbonate?
May 20, 2022
PRODUCT NEWS
The Recyclable Solid Polycarbonate Sheets
May 20, 2022
PRODUCT NEWS
Do’s and Don’ts to follow for cleaning Polycarbonate sheets
May 20, 2022
Related products
No products were found matching your selection.
Why choose yiplastic ?
Excellent Quality management
Global friendly
high-quality raw materials
Imported equipment lines
Significant manufacturing experience
Fast Order Delivery
Europen Stardard Product
Widely Application
FAQ
1. Can I cut the sheets by myself at my home?
Yes, you can easily cut these sheets by yourself. Just be extra careful. We also offer to cut your own polycarbonate sheets
2. Can you give me the sheets in my customized shape?
Yes, we can give you any shape or design of your choice.
3. I am bad at ordering online, what should I do?
We offer phone communication as well as a walk-in store. You can order with convenience at any one of these options
4. Are solid polycarbonate and multiwall polycarbonate the same?
No, a multiwall polycarbonate has a network of sheeting while solid polycarbonates are a clear sheet that looks like clear glass.
5. How are they different from other polycarbonate sheets?
They have a high power impact and very low weight than many solid polycarbonate panels present nowadays.
6. Are they crack-able or breakable?
No, the structure is made stiff enough to ensure no breakage or cracks.
7. Are they fire resistant?
Yes, they are designed to give fire protection and fire resistance.
8. Why are polycarbonate sheets replacing typical building materials?
YiPlastic’s twin-wall polycarbonate sheets are eye-catching and easy to install. They can be machined conveniently. That’s why they are getting more attention than many traditional building materials. They have durable, practical and intelligent features as well.
