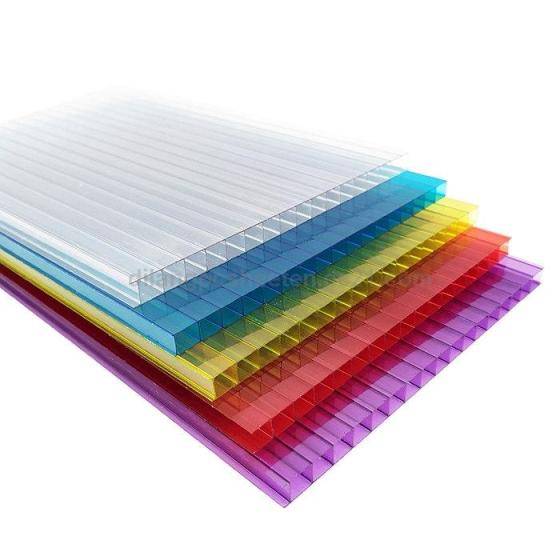

Yi Plastics twin wall polycarbonate sheets are very strong and powerful sheet which is 200 times more powerful than actual glass. It is also 50 times lighter than the actual weight of glass. Our multi-wall polycarbonate sheets are exceptional choices for many applications. Especially in China, the increasing rate of landmark buildings has made the world phenomenal. Because of this innovative building material, many unique design concepts of polycarbonate sheets have become a reality. The 2008 Beijing Olympic Games are the biggest example.
Factors affecting durability.
UV protective layer production process, co-extrusion/coating?
Material, thickness and uniformity of UV protective layer
The degree of matching between panel production equipment and PC raw materials
UV protective layer
Ten-year anti-aging quality guarantee with limited optical index
Guarantee based on the integrity of the company
Guaranteed by the technical strength of the enterprise
It is a guarantee of perception quality, not service life
Artificial accelerated aging experiments confirm the results.
Conclusion: The co-extruded UV protective layer has the strongest protective effect on the board
Artificial weathering (Xe-WOM procedure),
700 hrs = 1 year of Europe outdoor weathering
Light transmittance comparable to glass
Control light transmittance as needed
Soft and even light transmission – diffuse
Effectively limits solar heat penetration
Protects skin, cornea, and organic materials from fading
Unbreakable, used for roof and side lighting in buildings, replacing safety glass
Light transmission applications
UV-blocking layer for heritage protection
Natural environmental temperature effects.
Unlike ordinary plastics, polycarbonate sheets in the temperature range of -40 ℃ to 120 ℃ can still maintain various physical
performance in the temperature range of -40℃ to 120℃ without being affected by the natural environment temperature.
Safety, eliminating accident hazards
Reduced installation and transport losses
Reduced maintenance costs
Multi-layer panels can withstand severe natural disasters
Single-layer panels can be used for ballistic protection
THE COMPANY PRODUCTS HAVE PASSED SGS EU BUILDING MATERIALS FIRE DETECTION AND ROSH INSPECTION
YIPLASTIC Corrugated Polycarbonate Sheet meets the V0 or V2 fire rating according to UL94. Therefore, it can be used for household products, architecture, and transportation fields.
Restriction Of Hazardous Substances
YIPLASTIC offers environmentally-friendly Corrugated polycarbonate sheets and meets RoHS standards in Europe.
√ High flexible : Our twin wall polycarbonate sheets are highly flexible and can be used anywhere.
√ Light weigh : It is lightweight and very easy to carry and work with. and very low weight than many solid panels present nowadays. It comes with a UV protection layer to make it long-lasting.
√ Impact resistance : It has a high power impact , The structure is made stiff to ensure no breakage or cracks. It is present in many beautiful colors and different ranges of transmission.
√ Easy to install :The structure is very resilient, so it can work in every weather and UV condition. It resists all ranges of UV radiation. The highly flexible structure makes it easy to install and handle.
√ Anti-fire : It is designed to give fire protection and fire-resistance.
| Type | Thickness(mm) | Color type | Max width (mm) | Length(mm) | Density | Light transmisson | K VALUE | Min Cold Bend Radius (mm) |
| Twin-wall PC sheets | 4 | Clear Opalecent Grass green lake blue Gray Brown | 2100 mm | NO LIMITED | 0.9 | 80 | 4.1 | 700 |
| 6 | 1.1 | 80 | 3.5 | 1050 | ||||
| 8 | 1.5 | 80 | 2.9 | 1400 | ||||
| 10 | 1.7 | 79 | 2.8 | 1750 | ||||
| Three-wall PC Sheets | 8 | 1.7 | 73 | 2.6 | 1400 | |||
| 10 | 1.9 | 73 | 2.4 | 1750 | ||||
| 12 | 2.1 | 72 | 2.4 | 2100 | ||||
| 16 | 2.5 | 72 | 2.2 | 2800 | ||||
| Three-wall x structure PC sheet | 16 | Clear | 2.5 | 62 | 2.0 | Not recommended | ||
| Opalecent | ||||||||
| 25 | Sliver Gray | 3.5 | 55 | 1.7 | ||||
| Five-wall x structure PC sheet | 40 | Clear | 1500 | 4.7 | 45+-5 | 1.1 | ||
| Diffuse milky white | 11+-5 | |||||||
| Five-wall plug structure PC sheet | 40 | Milky white translucent | 1570 | 4.7 | 23+-5 |
REMARK:
| Item | Unit | Technical requirements | ||
| Falling hammer impact (perforation characteristics) | Maximum penetration force | N | ≥600 | |
| Maximum penetration energy | ≥5 | |||
| Falling hammer impact (50% impact damage energy) | ≥15 | |||
| Thermal expansion coefficient | ℃-1 | ≤3.5×10-5 | ||
| Weathering performance (6000h) | light transmittance reduction | ≤6.0 | ||
| Yellow index change | ≤10.0 | |||
| Heat transfer coefficien | d=8mm(twin-hollow) | W/(m2. K) | ≤3.3 | |
| d=10mm(twin-hollow) | ≤3.0 | |||
| d=10mm(three-hollow) | ≤2.8 | |||
| UV transmittance ratio | ≤0.001 | |||
| burning performance | grade | less than B grade | ||
| Model | Clear | Bronze | White opal | Glass Green | lake blue | Opalecent | Brown | Sliver Gray | Gray | Diffuse milky white | Milky white translucent | Custom Color |
| Twin-wall PC sheets | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | |||
| Three-wall PC Sheets | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | |||
| Three-wall x structure PC sheet | ✔ | ✔ | ✔ | ✔ | ||||||||
| Five-wall plug structure PC sheet | ✔ | ✔ |
TRANSMITTANCE
| MATERIAL | TRANSMITTANCE(%) |
| SINGLELAYER GLASS | 92 |
| 11OMM TWIN -WALL HOLLOW SHEET | 77 |
| Material Name | Heat transfer coefficient | Material Name | Heat transfer coefficient |
| （W/m2 ·K) | （W/m2 ∙K) | ||
| 6mm glass | 5.8 | 6 mm single polycarbonate sheet | 4.8 |
| 3＋3（3）Insulating glass | 4.09 | 8mm polycarbonate sheet | 2.9 |
| 3＋3（6）Insulating glass | 3.17 | 10mm polycarbonate sheet | 2.8 |
| 6＋6（6）Insulating glass | 3.06 | 16mm polycarbonate sheet | 2.2 |
| 3＋3（12）Insulating glass | 2.91 | 16mm polycarbonate sheet | 2.2 |
| 6＋6（12）Insulating glass | 2.8 | 25mm polycarbonate sheet | 1.7 |
Yes, you can easily cut these sheets by yourself. Just be extra careful. We also offer to cut your own polycarbonate sheets
Yes, we can give you any shape or design of your choice.
We offer phone communication as well as a walk-in store. You can order with convenience at any one of these options
No, a multiwall polycarbonate has a network of sheeting while solid polycarbonates are a clear sheet that looks like clear glass.
They have a high power impact and very low weight than many solid polycarbonate panels present nowadays.
No, the structure is made stiff enough to ensure no breakage or cracks.
Yes, they are designed to give fire protection and fire resistance.
YiPlastic’s twin-wall polycarbonate sheets are eye-catching and easy to install. They can be machined conveniently. That’s why they are getting more attention than many traditional building materials. They have durable, practical and intelligent features as well.
YIPLASTIC is a global leading manufacturer of high quality polycarbonate sheets and processing products,
Our 42000sqm and 5 imported lines are established in 2004 in china, we supply OEM AND ODM Marketing with high quality for all over the world.
