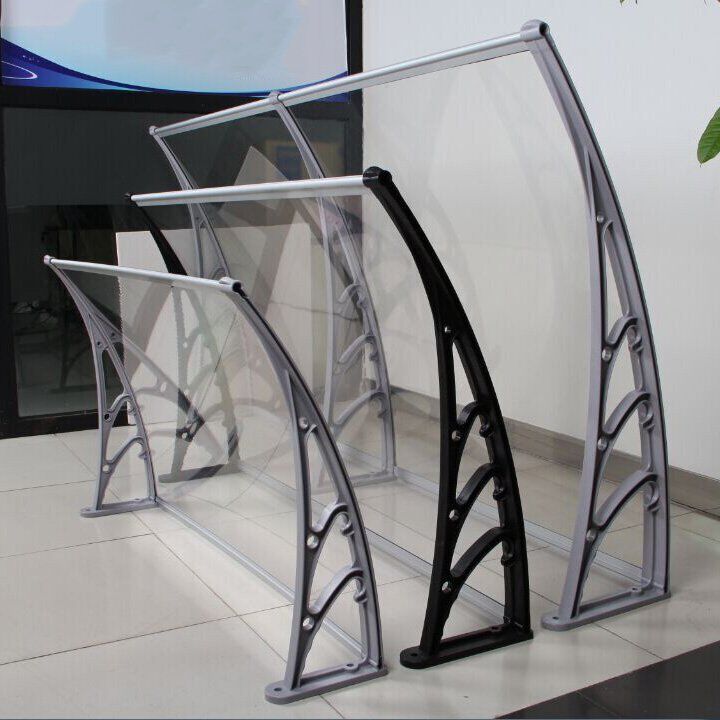

The YIPLASTIC polycarbonate door canopy is assembled from special engineering plastic and sprayed Aluminum brackets and polycarbonate panels , with a strong continuous combination. This design has completely changed the traditional practice of canopies made to order and welded to metal, with a novel concept and simple structure.

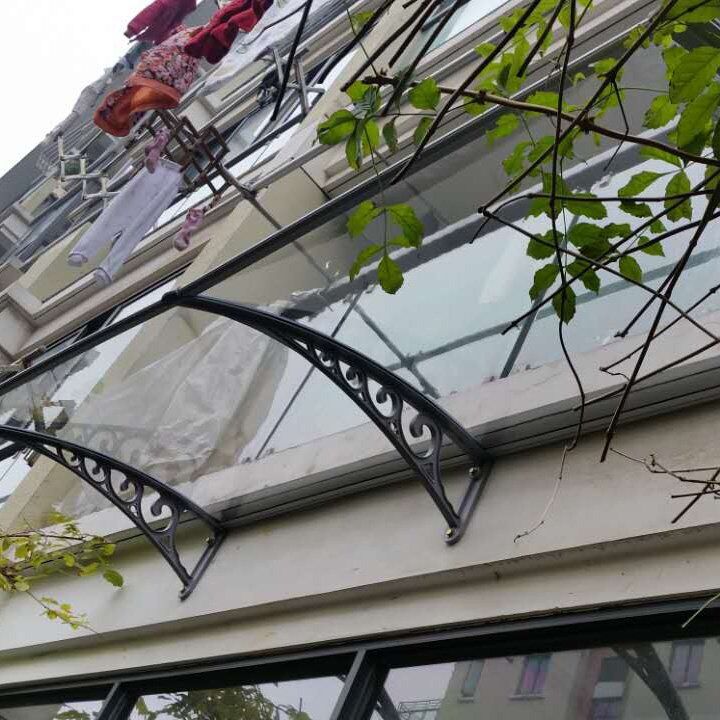

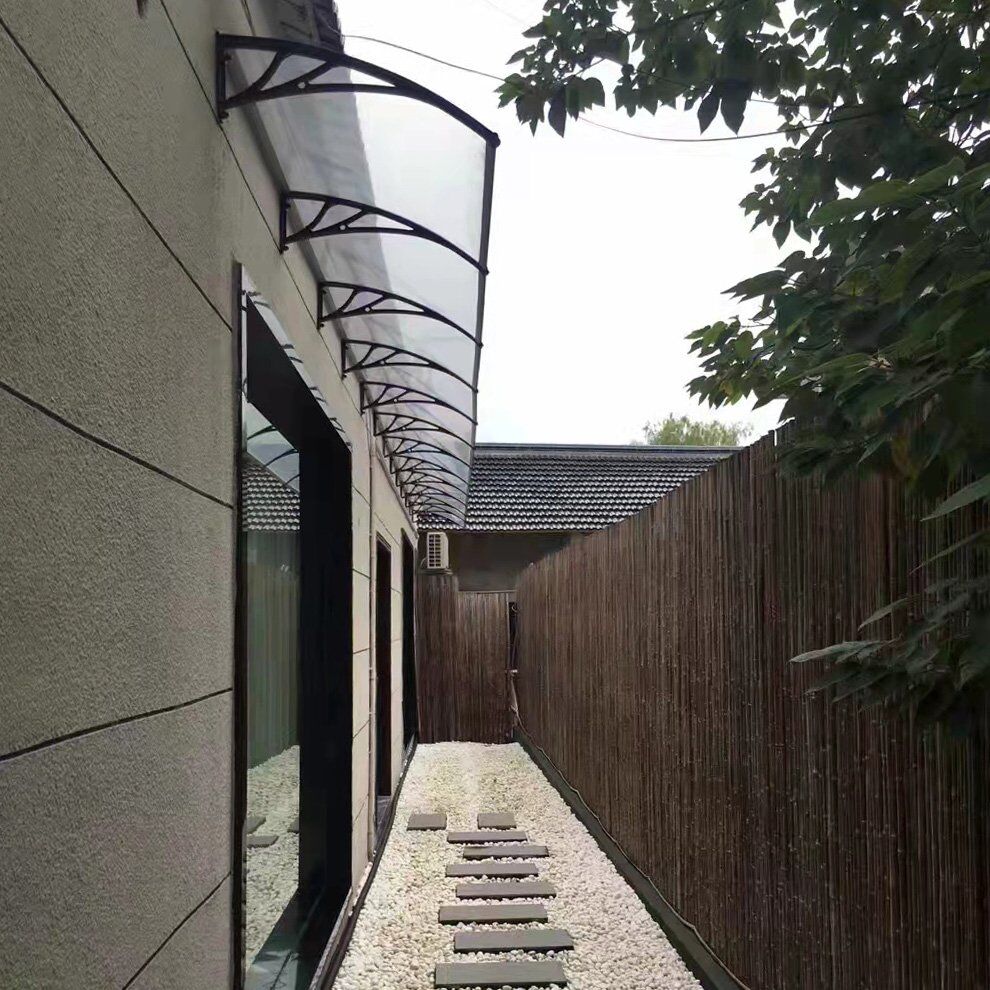

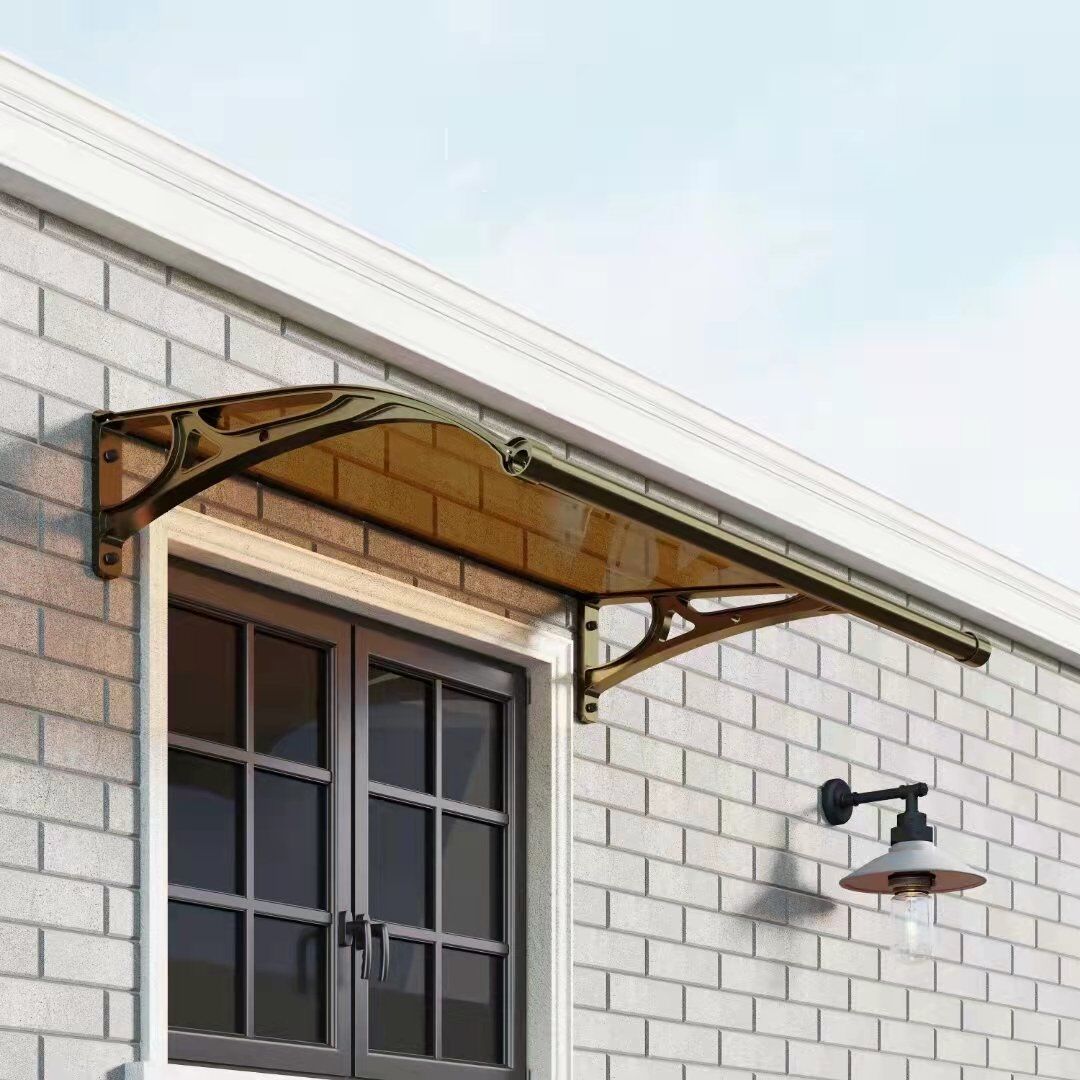

Polycarbonate awnings can be installed over doors, windows, outdoor air-conditioners, ATMs, outdoor mailboxes, etc. to keep out the sun and rain. The sturdiness can let a 4.5kg iron ball smash down directly without damage, the life span is 8-15 times that of ordinary canopies, the test accelerated ageing result is that the outdoor design can be used for more than 15 years under bad weather conditions. The quality of window canopy assemblies is protected by patents and is stable and guaranteed.
The combination of the polycarbonate door canopy can be extended indefinitely by adding brackets and the recessed design makes it easy to install.
YIPLASTIC ANIT UV&IR Polycarbonate sheets can isolat 100% of UV damage to human body,effectively isolate temperature transmission,achieve constant temperature performance,superior impact resistance,fight against high-altitude parabolliceffective safety protection,20 years of super Long warranty,is the replacement of outdoor PC board.
Artificial accelerated aging experiments confirm the results.
Conclusion: The co-extruded UV protective layer has the strongest protective effect on the board
Artificial weathering (Xe-WOM procedure),
700 hrs = 1 year of Europe outdoor weathering
Light transmittance comparable to glass
Control light transmittance as needed
Soft and even light transmission – diffuse
Effectively limits solar heat penetration
Protects skin, cornea, and organic materials from fading
Unbreakable, used for roof and side lighting in buildings, replacing safety glass
Light transmission applications
UV-blocking layer for heritage protection
√ Aesthetics: tree structure, hollow design, simple and smooth appearance, beautiful and generous, overturning the traditional canopy impression.
√ Practicality: door awning is used to protect windows, doors, corridors, aisles, air conditioners and other spaces and equipment from the rain and sun, making it very versatile.
√ Safety: Made of lightweight materials, it will not cause serious damage to people and objects even if it falls from a height due to irresistible factors.
√ Convenience: easy to install, no welding required, easy to dismantle and replace, save time and effort.
√ Environmentally friendly: Made from brand new raw materials, all components are recyclable.
√ UV Resistance & Heat Dissipation:Features UV-resistant layer for effectively protecting from harmful UV rays, hollow design for dissipating heat & lowering temperature in hot summer, saving your electric cost on cooling down.
√ Advanced solid construction:new generation design, front and rear brackets and aluminium parts are locked with stainless steel self-tapping screws to prevent the components from falling from height.
| BRAND NAME | Model | Specification LXW(MM) | Thickness | Remark | Main Braket material |
| YIPLASTIC | 600-PC（PC Solid Sheets） | 600mmx600mm(80Omm) | 3 | 1 Board,2brackets，full set accessories | Engineering Plastic Brackets |
| YIPLASTIC | 800-PC（PC Solid Sheets） | 800mmx800mm(1000mm;1200mm) | 3 | 1 Board,2brackets,full set accessories | |
| YIPLASTIC | 1000-PC（PC Solid Sheets） | 1000mmx800mm(1000mm;1200mm;1500mm) | 3 | 1 Board,2brackets,full set accessories | |
| YIPLASTIC | 1200-PC（PC Solid Sheets） | 1200mmx800mm(1000mm;1200mm;1500mm) | 3 | 1 Board,2brackets,full set accessories | |
| YIPLASTIC | 1500-PC（PC Solid Sheets） | 1500mmx800mm(1000mm;1200mm;1500mm) | 3 | 1 Board,2brackets,full set accessories | |
| YIPLASTIC | 600-PC（PC Solid Sheets） | 600mmx600mm(80Omm) | 3 | 1 Board,2brackets，full set accessories | Aluminum Brackets |
| YIPLASTIC | 800-PC（PC Solid Sheets） | 800mmx800mm(1000mm;1200mm) | 3 | 1 Board,2brackets,full set accessories | |
| YIPLASTIC | 1000-PC（PC Solid Sheets） | 1000mmx800mm(1000mm;1200mm;1500mm) | 3 | 1 Board,2brackets,full set accessories | |
| YIPLASTIC | 1200-PC（PC Solid Sheets） | 1200mmx800mm(1000mm;1200mm;1500mm) | 3 | 1 Board,2brackets,full set accessories | |
| YIPLASTIC | 1500-PC（PC Solid Sheets） | 1500mmx800mm(1000mm;1200mm;1500mm) | 3 | 1 Board,2brackets,full set accessories |
| PHYSICALPROPERTY TABLE | |||
| PROPERTY | TEST METHOD | UNITS | VALUE |
| PHYSICAL | |||
| Specific Gravity | ASTM D792 | g/cm² | 1.2 |
| Light Transmission | ASTM D1003 | % | 45-92 |
| Water Absorption Equilibrium,24HRS | ASTM D570 | % | 0.35 |
| MECHANICAL | |||
| Tensile Strength | ASTM D882 | Mpa | ≥60 |
| Elongation Ultimate | ASTM D882 | % | ≥90 |
| THERMAL | |||
| Vicat Sofrening Temperature | ASTM D1525 | ° c | 135 |
| Strain Telief@135°C | ASTM D1204 | % | ≤l |
| ELECTRICAL | |||
| Diectric Strength(@10mils) | ASTMD 149 | KV/MM | ≥30 |
| Volume Resistvity@25° C,50%RH | ASTMD 257 | Ω-cm | >1X10′ |
| Surface Resistvity@25° C,50%RH | ASTMD257 | Q | >1X10′ |
| FLAMMABILITY | |||
| Burning behaviorUL94UL94(1.5mm) | Class | HB | |
| UL94UL94(0.75mm) | Class | V-2 | |
| PRODUCE MACHINE | PRODUCE MACHINE | PRODUCT WIDTH | THICKNESs |
| BREYER② GERMAN BREYER IINE | POLYCARBONATESHEETS | 1350mm | 1.0-8.0mm |
| Type | Clear | Bronze | White opal | Transparent Green | Transparent blue | Opalecent | Brown | Sliver Gray | Gray | Diffuse milky white | Milky white translucent | Custom Color |
| PC Solid sheets | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ |
| PC Hollow sheets | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ |
| Brackets | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ |
Office building ceiling, department stores, hotels, villas, schools, hospitals, stadiums, recreation centers and public facilities
Highway, rail and urban elevated road noise barriers
Subway entrances, railway stations, car parks, shopping centers, shelters, rest rooms, corridors canopy
Bank security counter, jewelry store anti-theft window, police riot shields airports, safety glazing material plant Advertising light panel, advertising display cards, decorative walls
Home, office interior space, walkways, fence, balcony, shower room sliding door
Instrument accessories, display screen and military industry, mechanical shutter
They can be angular or circular corrugated polycarbonate sheets.
Yes, they can be used in greenhouses.
Yes, they prevent condensation.
Yes, they are energy-saving.
Yes, you can make all protection equipment from this.
We can give you assistance according to your requirements. Our contact numbers are…
Yes, you can check our available colors in our specifications section.
YIPLASTIC is a global leading manufacturer of high quality polycarbonate sheets and processing products,
Our 42000sqm and 5 imported lines are established in 2004 in china, we supply OEM AND ODM Marketing with high quality for all over the world.
